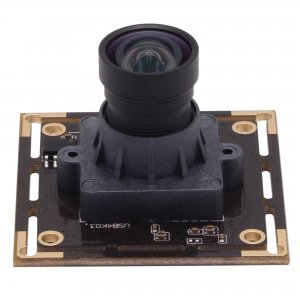

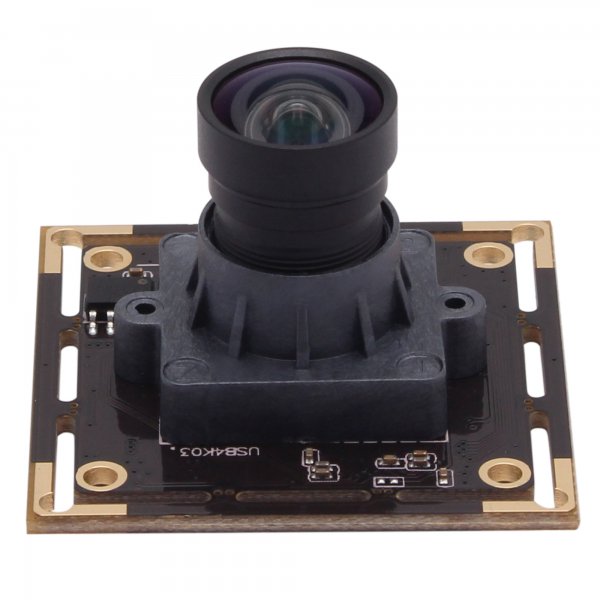

4K Sony IMX415 Camera module USB 2.0 with 100 degree no distortion lens for Biometric Scanning

Model: ELP-USB4K03-V100

Add you Tags

Product 2/7

Return to the Product List

Details

Download

Features:

* 4K 3840*2160 High resolution USB Camera module
* 1/2.5”Sony IMX415 sensor for high quality image
* With HD 100 degree no distortion M12 lens
* High frame rate - MJPEG 3840*2160 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 38x38/32x32mm for embedded application
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC

Specification:

Model NO.:	ELP-USB4K03-V100
Image Sensor	SONY IMX415 (1/2.8” )
Max. Resolution	3840(H) *2160 (V)
Pixel Size	1.45µmx1.45µm
Compression format	MJPEG / YUY2（YUYV）
Resolution & frame	3840x2160@ 30fps MJPEG / 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x960@30fps MJPE 1280x720@ 30fps MJPEG / 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2 1920x1080@ 5fps YUY2/1280x960@5fps YUY2 1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center definition	1000LW/PH (Center)
S/N Ratio	30dB
Sensitivity	0.65V/lux-sec@550nm
Minimum illumination	0.2lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
AEC	Support
AEB	Support
AGC	Support
Auto Focus	Support
Adjustable parameters	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure
Lens Parameter	100 degree no distortion M12 lens (HFOV 83 degree, VFOV 52degree) IR filter: 650±10nm
Power supply& connector	USB BUS POWER 4P-2.0mm socket
Power Voltage	DC5V
Power Current	200mA
Board Size	3838/ 3232MM
Storage Temperature	-20°C to 70°C
Work Temperature	0°C to 60°C
USB Cable	1M(2M/3M/5M optional)
Operating System support	Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
