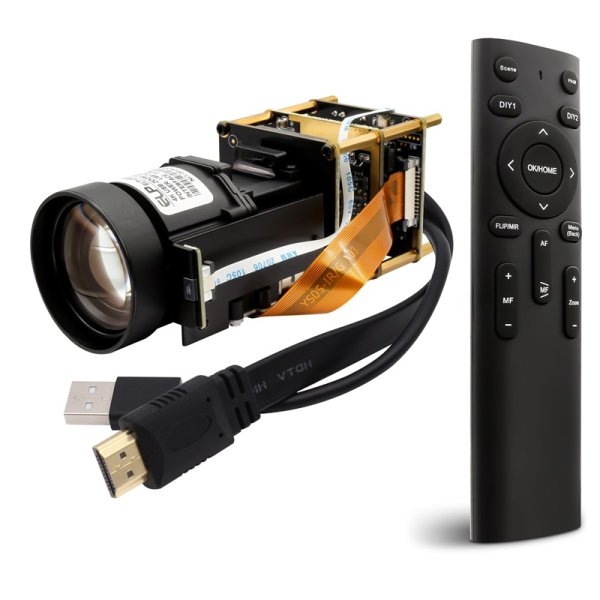

4K 12X Zoom HDMI Autofocus 1080P 60fps Infrared Remote Control H.265 H.264 USB Camera Module

4K 12X Zoom HDMI Autofocus 1080P 60fps Infrared Remote Control H.265 H.264 USB Camera Module

  • Model: ELP-USB4KCAM06ZF-12
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    * 4K 3840*2160 High resolution USB Camera Module



    * Sony 1/2.8” CMOS sensor for high quality image



    * TOF Laser Fast Autofocus: 200ms, also could manual focus, HFOV 72 degree, no distortion



    * Focus Mode: Auto Focus/Manual Focus switching.



    * Zoom: 12X zoom-10X optical zoom and 1.2X digital zoom



    * Lens: 10X optical zoom



    * High frame rate - MJPEG 3840*2160 @30fps/1920*1080 @60fps; H.264/H.265 1920*1080 @30fps



    * MJPEG/YUY2/H.264/H.265 output format optional

     -USB output:

      MJPEG-3840x2160@30fps, 2560x1440@30fps, 1920x1080@60fps, 1280x720@60fps, 640x480@60fps

      H.264/H.265-1920x1080@30fps, 1280x720@30fps, 640x480@30fps
     -HDMI Output: 1920x1080@60fps



    * Interface: Type-C & HDMI



    * Remote Control Function: 2.4G wireless infrared remote control



    * Advanced features: for more freedome in your DIY video creation. Autofocus /Manual Focus Dual Switching, Four Scenes Switching, Support Customized Image Switching, One-touch Image Restoration & Exition from Customized Mode. Mirror Imaging, Flipping, White Balance Auto Calibration in CB Mode



    * UVC compliant - support Windows, Linux, Android system with UVC





    Specifications:



    Model No.:

    ELP-USB4KCAM06ZF-12 (12X Zoom)



    option for:

    ELP-USB4KCAM06ZF-21 (21X Zoom)

    Zoom Range

    12X Zoom
    (10X Optical Zoom,1.2X Digital Zoom）

    Sensor

    Image Sensor

    SONY 4K 1/2.8 inch CMOS Sensor

    Pixel Size

    2.0μm X 2.0μm

    Scanning System

    4:3/16:9 Progressive Scan

    Synchronization System

    Internal Synchronization

    Effective Resolution

    3840（H）X2160(V)

    Min. illumination

    0.2 Lux

    Horizontal Resolution

    1000TVL

    Compression Format

    MJPEG / YUY2(YUYV)/H.264/H.265

    Resolution & Frame

    MJPEG:
    3840x2160@ 30fps MJPEG /
    2560x1440@ 30fps MJPEG
    1920x1080@ 60fps MJPEG/
    1280x720@60fps MJPE
    640x480@ 60fps MJPEG

    H.264/H.265:
    1920x1080@ 30fps / 1280x720@ 30fps/ 640x480@ 30fps

    YUY2:
    1920x1080@ 5fps / 1280x720@ 10fps
    640x480@ 30fps

    HDMI:
    1920x1080@ 60fps

    Optical

    Lens

    Autofocus,

    10X Optical Zoom F=4.8mm-48.2mm

    Zoom Speed

    Wide~Tele: About 3.0s   Tele~Wide: About 2.6s

    Focus Mode

    Auto/Manual

    Focus Range

    About 10cm~∞(Wide)   About 50cm~∞(Tele)

    Field of View Angle

    About 72°(Wide)   About 7.2°(Tele)

    Function

    Automatic Aperture

    Auto/Manual

    Exposure

    Auto/Manual

    White Balance

    Auto/Manual

    Electronic Rolling Shutter

    1/2~1/10000(s)

    Remote Control

    2.4G wireless remote control

    Menu

    Function menu in Chinese and English

    Noise Reduction

    2D&3D noise reduction

    Other Functions

    Gamma, Mirror Image, Flips, Anti-flicker

    Communi-cation Mode

    UVC Protocol

    Standard UVC protocol

    Display Modes & Power Supply

    I. USB Output
    II. HDMI Output
    III. USB Output +HDMI Output Simultaneous

    Working Temperature

    -20°C~60°C

    Power Supply

    DC 5V, 2A

    Size

    Triple boards, 38x38x101.5mm

    USB Cable

    1.5m cable with Type-C & USB 3.0 port

    HDMI Cable

    1.5m cable with HDMI ports

    Operating System Request

    Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC
    MAC-OSX10.4.8 or later
    Android 5.x or above
