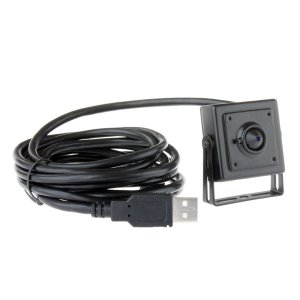

Model

ELP-USB100W03M-PL37

Sensor

NT99141

Lens Size

1/4 inch

Pixel Size

3.0um X 3.0um

image area

3888 µm x 2430 µm

Max. Resolution

1280(H)X720(V)

Compression format

MJPEG  / YUV2（YUYV）

Resolution & frame

1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps

800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps

352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps

176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps

S/N Ratio

40dB

Dynamic Range

69dB

Sensitivity

3.7V/lux-sec@550nm

Mini illumination

0. 1lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

USB protocol

USB2.0 HS/FS

OTG protocol

USB2.0 OTG

Free Drive Protocol

USB Video Class（UVC）

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
White balance, Backlight Contrast, Exposure

Lens Parameter

3.7mm pinhole lens

LED board power connector

Support  2P-2.0mm socket

Power supply

USB BUS POWER  4P-2.0mm socket

Power supply

DC 5V

Operating Voltage

100mA~120mA

Working current

-10～70℃

Working temperature

-20～85℃

size /Weight

Cable

Standard  1M / optional 2M,3M,5M

Operating system request

Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later

Android 4.0 or above with UVC
