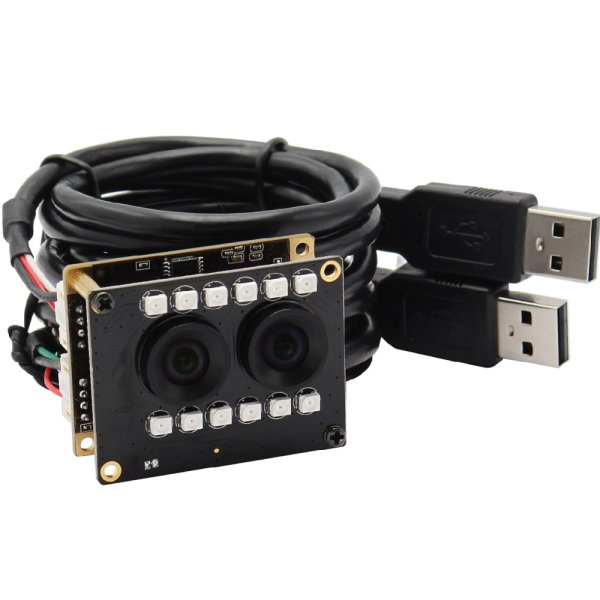

2MP WDR AR0230 Dual Lens Camera Module USB 2.0 for Face Recognition With IR LED Board

Model: ELP-USB0230X2-V90

Add you Tags

Product 2/2

Details

Download

This is a newly developed binocular camera, it is having one 2-Megapixel WDR Color camera and one 2-Megapixel B/W Camera with USB 2.0 output. It is mainly used for the face recognition systems, for the identity verification and safety inspection in bank ATMs, Customs and airport etc.

Features:
*2MP Dual lens usb camera module with IR LED board
* Adopt wide dynamic range AR0230 sensor, WDR range up to 105dB
* Equipped with 2pcs HD no distortion lens
* Two camera with separate image output, One is color mode,another is block/white Mode
* With 12pcs ir led board for night vision
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interfac* UVC compliant - support Windows, Linux, Android system with UVC
*Widely used to in face recognition, biopsy detection etc. Also support secondary development according customers” own need

Specification:

Model	ELP-USB0230X2-V90
Sensor	AR0230
Lens Size	1/2.7 inch
Pixel Size	3.0µm x 3.0 µm
Image Area	3888µm x 2430 µm
Max. Resolution	1920(H)X1080(V)
Compression format	MJPEG
Resolution & frame	Camera0(Left ) Color & Camera1(Right) B/W MJPEG：1920X1080@30fps/1280X960@30fps/1280X720@30fps 1024X768@30fps/800X600@30fps/640X480@30fps 352X288@30fps/320X240@30fps YUY2: 1920X1080@5fps/1280X960@5fps/1280X720@5fps 1024X768@5fps/800X600@15fps/ 640X480@30fps 352X288@30fps/320X240@30fps
S/N Ratio	41dB
Dynamic Range	105dB
Sensitivity	4.0V/lux-sec@550nm
Mini illumination	0 lux (IR)
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port type	USB2.0 High Speed
Free Drive Protocol	USB Video Class（UVC）
Support OTG Protocol	USB2.0 OTG
AEC	Support
AEB	Support
AGC	Support
Adjustable parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure
Lens Parameter	M12 Lens FOV(D) 138 (H) 100 degree
Power supply	USB BUS POWER 4P-2.0mm socket
Power supply	DC5V
Working current	-10～70℃
Working temperature	-20～85℃
Operating system request	Win XP/Vista/Win7/Win8/Win9/Win10/Win11 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
