2MP cmos OV2710 sensor free driver night vision IR usb camera module Full HD 1080P

2MP cmos OV2710 sensor free driver night vision IR usb camera module Full HD 1080P

  • Model: ELP-USBFHD05MT-KRL36
Add to Cart:

Add you Tags
Details
Download

    Features:

    *CMOS Sensor 1/2.7" OV2710 CMOS USB Camera

    *IR night vision USB Camera Module

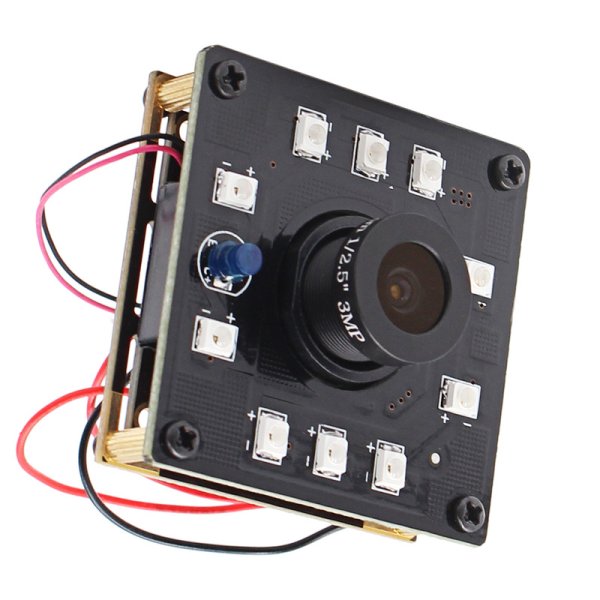

    *With IR LED board, With night vision function. IR range about 10-15m

    *With HD 3.6mm lens, many other lens optional

    *High frame rate– deliver 30 fps in 1920*1080 resolution, 100-120fps at 640*480 resolution

    *Low power consumption – ideal for portable equipment. usb charger camera

    *UVC USB infrared Camera for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

    *Support OTG Function, OTG usb camera



    Specifications:



    Model

    ELP-USBFHD05MT-KRL36

    Optional Models

    ELP-USBFHD05MT-KRL21 (2.1mm)     ELP-USBFHD05MT-KRL28 (2.8mm)
    ELP-USBFHD05MT-KRL36 (3.6mm)     ELP-USBFHD05MT-KRL60 (6mm)
    ELP-USBFHD05MT-KIR80 (8mm)         ELP-USBFHD05MT-KRL12 (12mm)
    ELP-USBFHD05MT-KRL100 (No distortion lens, HFOV about 85 degree)
    ELP-USBFHD05MT-KRL170 (fisheye lens, HFOV about 140degree)
    ELP-USBFHD05MT-KRL156 (fisheye lens, HFOV > 180 degree)
    All above models, specifications are same, just lens different

    Sensor

    1/2.7 inches OV2710

    Max. Resolution

    FULL HD 1920(H)X1080(V)

    Compression Format

    MJPEG / YUV2(YUYV)

    Resolution & Frame Rate

    320X240 QVGA MJPEG @100fps/ 352X288 CIF MJPEG @100fps
    640X480 VGA MJPEG@100fps/ 800X600 SVGA MJPEG@60fps
    1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps
    1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps

    Special Function

    Lens correction/ Defective pixel correction/ Black sun cancellation

    Mini Illumination

    0lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Sensitivity

    3.7V/lux-sec@550nm

    Connecting Port type

    USB2.0 High Speed(Support USB2.0 HS/FS, USB2.0 OTG)

    USB Protocol

    USB2.0 HS/FS USB1.1/USB1.0

    OTG Protocol

    USB2.0 OTG

    Free Drive Protocol

    USB Video Class(UVC)

    AEC, AEB, AGC

    Support

    Adjustable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure

    Lens Parameter

    3.6mm lens (FOV about 90 degree, many other lens optional)

    Night Vision

    Support, need to equipped IR sensor 850nm or 940nm lens and IR LED Board

    LED board power connector

    Support 2P-2.0mm socket

    Power Supply

    USB BUS POWER 4P-2.0mm socket

    Operating Voltage

    DC5V

    Working Current

    120mA~220mA

    Working Temperature

    -10~70℃

    Storage Temperature

    -20~85℃

    Board Size

    38x38mm

    Cable

    Standard 1m (optional 2/3/5/0.3/0.5m...)

    Operating System Request

    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Wince with UVC
    Android 4.0 or above with UVC
