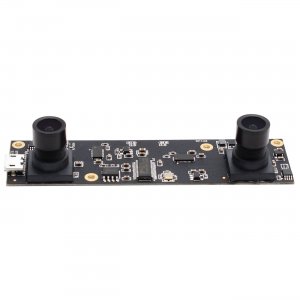

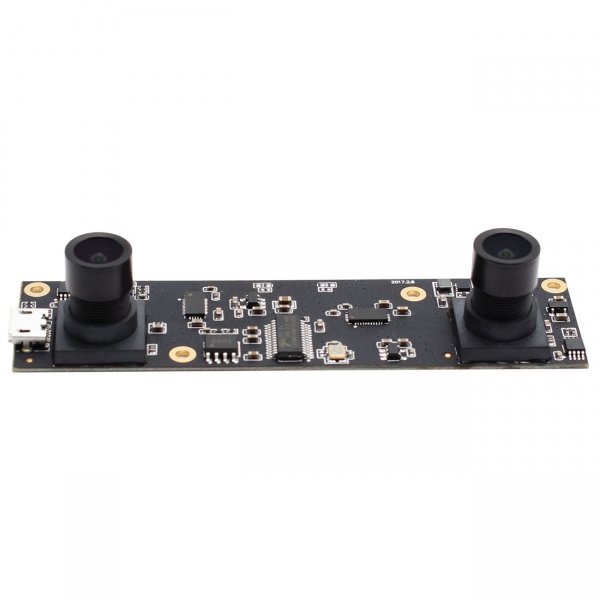

2MP 1080p dual lens AR0330 cmos usb camera module android 3D Stereo for distance measuring equipment

2MP 1080p dual lens AR0330 cmos usb camera module android 3D Stereo for distance measuring equipment

  • Model: ELP-1080P2CAM-V90
Add to Cart: Min:  999
Max: 999

Add you Tags
Details
Download

    Features:

    * Full HD 1080P dual lens camera module
    * 1/3” Aptina CMOS AR0330 sensor for high quality image
    * With 2pcs HD mini size M9 90 degree lens
    * Full HD resolution up 1920*1080 for left and right , two camera video stitched can reach 3840*1080
    * Mini size 86*23mm for embedded application
    * Compact industrial camera solution for any PC with USB port
    * Support Windows, Linux and Android OS with UVC
    * Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
    * Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography etc.

    Specification:

    Model

    ELP-1080P2CAM-V90

    Sensor

    AR0330

    Lens Size

    1/3 inches

    Pixel Size

    5.07um X 3.38um

    Max. Resolution

    (left)1920(H)X1080(V)  (right)1920(H)X1080(V)  (stitched) 3840(H)X1080(V)

    Compression format

    MJPEG / YUV2（YUYV）

    Resolution & frame

    1920X1080 MJPEG@ 30fps
    1904X1080 MJPEG@ 30fps
    1280X720 MJPEG@ 30fps
    640X480 MJPEG@ 30fps YUY2@10fps
    320X240MJPEG@ 30fps YUY2@30fps

    USB Protocol

    USB2.0 HS/FS USB1.1/USB1.0

    S/N Ratio

    39dB

    Dynamic Range

    72.4dB

    Sensitivity

    2.0V/lux-sec@550nm

    Mini illumination

    0. 1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    Free Drive Protocol

    USB Video Class（UVC）

    OTG Protocol

    USB2.0 OTG

    AEC

    Support

    AEB

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure

    Lens Parameter

    M9 Lens HOV 90 degree

    Power supply

    USB BUS POWER  Micro USB

    Operating Voltage

    DC5V

    Working current

    220mA~280mA

    Working temperature

     -10～70℃

    Storage temperature

     -20～85℃

    Board size /Weight

    86X23mm

    Cable

    Standard 90cm

    Operating system request

    Win XP/Vista/Win7/Win8
    Linux with UVC（above linux-2.6.26）
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
