General Description:

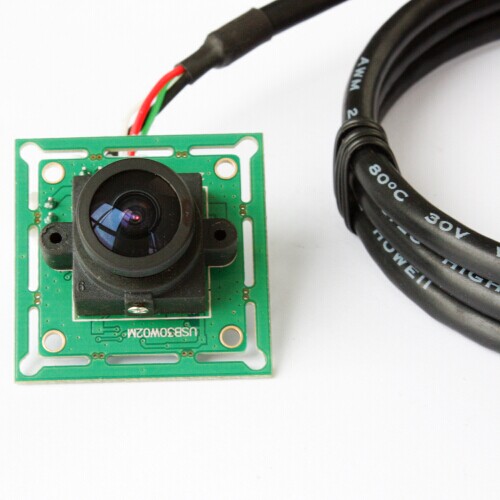

The low cost USB CMOS board camera module(model: ELP-USB30W02M serials) is ideal for many applications like security
systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made
by OmniVision, who is one of the world biggest leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

Feature:
*Equiped with wide angle view fisheye lens up to 170 degree
*640x480 VGA USB Camera Module
*Support Android&Linux system
*Support YUY&MJPEG format
*CMOS VGA sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC

Specification:

Effective Pixels:

640 (H) x 480 (V) pixels
480(H) x 480 (V) pixels
450 (H) x 450 (V) pixels
352 (H) x 288 (V) pixels
320 (H) x 240 (V) pixels
288(H) x 288 (V) pixels
240 (H) x 240 (V) pixels

Performance:

640 (H) x 480 (V) pixels    MJPEG 60fps      YUY2 30fps
480(H) x 480 (V) pixels    MJPEG 30fps       YUY2 30fps
450 (H) x 450 (V) pixels    MJPEG 30fps      YUY2 30fps
352(H) x 288 (V) pixels    MJPEG 30fps       YUY2 30fps
320 (H) x 240 (V) pixels    MJPEG 30fps      YUY2 30fps
288(H) x 288 (V) pixels    MJPEG 30fps       YUY2 30fps
240 (H) x 240 (V) pixels    MJPEG 30fps       YUY2 30fps


Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box  TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture,  credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
