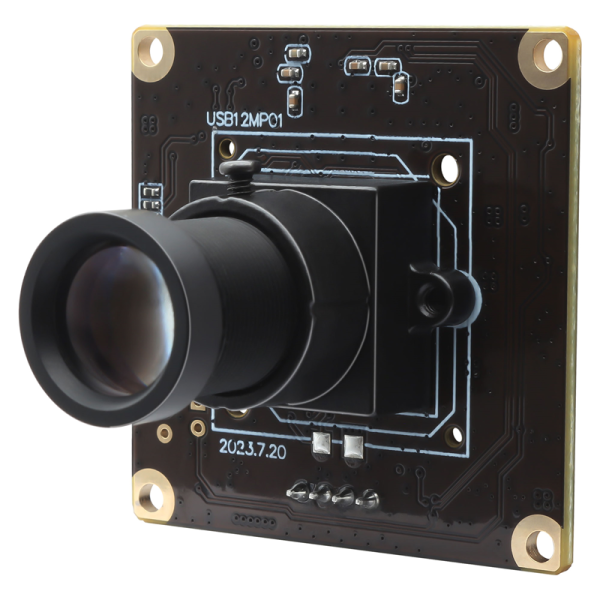

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with M12 25mm lens

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with M12 25mm lens

  • Model: ELP-USB12MP01-L25
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    *1/2.3" SONY IMX577 Sensor



    *Max Resolution:3840(H)*3040(V)  11.6MP



    *3840x3040 MJPEG@20FPS, 3840x2880 MJPEG@20FPS, 3840x2160 MJPEG@30FPS, 1920x1080 MJPEG@120FPS



    *HD M12 25mm lens (2.8mm,3.6mm,6mm,12mm,16mm, fisheye lens, no distortion lens...Many lens optional)



    *38x38mm, small size, easy to embedded in kinds of smart machines.



    *Standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)



    *Free driver, Plug & Play



    *Exposure, Hue, White Balance, Contrast, Gamma, Brightness....Parameters adjustable.



    *Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    *Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)



    *OTG support



    Specifications:

    Model NO.:

    ELP-USB12MP01-L25

    Image Sensor

    SONY IMX577 (1/2.3” )

    Max. Resolution

    3840(H) *3040 (V)

    Sensor Size/ Image Size

    10.7mmX8.5mm/5.95mmX4.71mm

    Default. Resolution

    3840(H) *2880(V)

    Compression Format

    MJPEG  / YUY2 (YUYV)

    Resolution & Frame Rate

    3840X3040 MJPEG@20fps YUY2@1fps

    3840X2880 MJPEG@20fps YUY2@1fps

    3840X2160 MJPEG@30fps YUY2@1fps

    2592X1944 MJPEG@30fps YUY2@1fps

    2048X1536 MJPEG@30fps YUY2@3fps

    1600X1200 MJPEG@30fps YUY2@5fps

    1920X1080 MJPEG@120fps YUY2@5fps

    1280X960 MJPEG@120fps YUY2@5fps

    1280X720 MJPEG@120fps YUY2@5fps

    1024X768 MJPEG@120fps YUY2@5fps

    960X720 MJPEG@120fps YUY2@5fps

    800X600 MJPEG@120fps YUY2@20fps

    640X480 MJPEG@120fps YUY2@30fps

    320X240 MJPEG@120fps YUY2@30fps

    Center Definition

    1000LW/PH (Center)

    S/N Ratio

    24dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.1 lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC/ AWB/ AGC

    Support

    Auto Focus

    Support optional

    Adjustable Parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

    Balance, Exposure

    Lens Parameter

    M12 25mm lens, HFOV 12 degree/ VFOV 10 degree

    Power Supply& Connector

    USB BUS POWER  4P-2.0mm socket

    Power Voltage

    DC 5V

    Power Current

    240mA

    Board Size

    38mm × 38mm

    Storage Temperature

    -20°C to 85°C

    Working Temperature

    -10°C to 65°C

    USB Cable

    1M(2M/3M/5M optional)

    Operating System Support

    Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC

    Optional Models

    M12 Normal lens:

    ELP-USB12MP01-L281 (2.8mm HFOV 116 degree)

    ELP-USB12MP01-L361 (3.6mm HFOV 92 degree)

    ELP-USB12MP01-L601 (6mm HFOV 61 degree)

    ELP-USB12MP01-L12 (12mm HFOV 26 degree)

    ELP-USB12MP01-L16 (16mm HFOV 23 degree)

    ELP-USB12MP01-L25 (25mm HFOV 12 degree)



    No/Less distortion lens:

    ELP-USB12MP01-V100 (HFOV 88 degree)

    ELP-USB12MP01-LC1100 (HFOV 71 degree)

    ELP-USB12MP01-H100 ( HFOV 102 degree)

    ELP-USB12MP01-H110 (HFOV 118 degree)

    ELP-USB12MP01-H120 (HFOV 125-128 degree)



    Fisheye lens:

    ELP-USB12MP01-L170 (HFOV 164 degree)

    ELP-USB12MP01-L185 (HFOV >180 degree)
