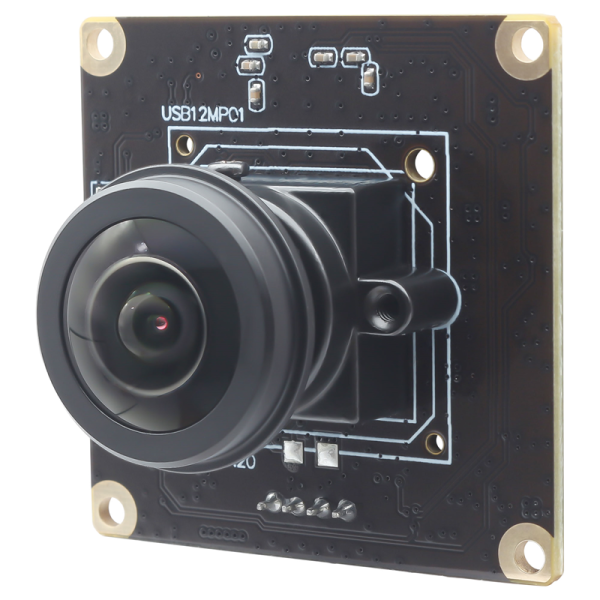

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with Fisheye lens 200 Degree

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with Fisheye lens 200 Degree

  • Model: ELP-USB12MP01-L185
Add to Cart:

Add you Tags
Details
Download

    Features:



    * 1/2.3" SONY IMX577 Sensor



    * Max Resolution:3840(H)*3040(V)  11.6MP



    3840x3040 MJPEG@20FPS, 3840x2880 MJPEG@20FPS, 3840x2160 MJPEG@30FPS, 1920x1080 MJPEG@120FPS



    * Lens: Fisheye lens, 200 degree



    * Board size 38x38mm, small size, easy to embedded in kinds of smart machines.



    * Standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)



    * Free driver, Plug & Play



    * Exposure, Hue, White Balance, Contrast, Gamma, Brightness....Parameters adjustable.



    * Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    * Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)



    * OTG support







    Specifications:

    Model NO.:

    ELP-USB12MP01-L185

    Image Sensor

    SONY IMX577 (1/2.3” )

    Max. Resolution

    3840(H) *3040 (V)

    Sensor Size/ Image Size

    10.7mmX8.5mm/5.95mmX4.71mm

    Default. Resolution

    3840(H) *2880(V)

    Compression Format

    MJPEG  / YUY2 (YUYV)

    Resolution & Frame Rate

    3840X3040 MJPEG@20fps YUY2@1fps

    3840X2880 MJPEG@20fps YUY2@1fps

    3840X2160 MJPEG@30fps YUY2@1fps

    2592X1944 MJPEG@30fps YUY2@1fps

    2048X1536 MJPEG@30fps YUY2@3fps

    1600X1200 MJPEG@30fps YUY2@5fps

    1920X1080 MJPEG@120fps YUY2@5fps

    1280X960 MJPEG@120fps YUY2@5fps

    1280X720 MJPEG@120fps YUY2@5fps

    1024X768 MJPEG@120fps YUY2@5fps

    960X720 MJPEG@120fps YUY2@5fps

    800X600 MJPEG@120fps YUY2@20fps

    640X480 MJPEG@120fps YUY2@30fps

    320X240 MJPEG@120fps YUY2@30fps

    Center Definition

    1000LW/PH (Center)

    S/N Ratio

    24dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.1lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC/ AWB/ AGC

    Support

    Auto Focus

    Support optional

    Adjustable Parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

    Balance, Exposure

    Lens Parameter

    M12 Fisheye Lens, HFOV >180 degree/ VFOV 177 degree

    Power Supply& Connector

    USB BUS POWER  4P-2.0mm socket

    Power Voltage

    DC 5V

    Power Current

    240mA

    Board Size

    38mm × 38mm

    Storage Temperature

    -20°C to 85°C

    Working Temperature

    -10°C to 65°C

    USB Cable

    1M(2M/3M/5M optional)

    Operating System Support

    Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC

    Optional Models

    M12 Normal lens:

    ELP-USB12MP01-L281 (2.8mm HFOV 116 degree)

    ELP-USB12MP01-L361 (3.6mm HFOV 92 degree)

    ELP-USB12MP01-L601 (6mm HFOV 61 degree)

    ELP-USB12MP01-L12 (12mm HFOV 26 degree)

    ELP-USB12MP01-L16 (16mm HFOV 23 degree)

    ELP-USB12MP01-L25 (25mm HFOV 12 degree)



    No/Less distortion lens:

    ELP-USB12MP01-V100 (HFOV 88 degree)

    ELP-USB12MP01-LC1100 (HFOV 71 degree)

    ELP-USB12MP01-H100 ( HFOV 102 degree)

    ELP-USB12MP01-H110 (HFOV 118 degree)

    ELP-USB12MP01-H120 (HFOV 125-128 degree)



    Fisheye lens:

    ELP-USB12MP01-L170 (HFOV 164 degree)

    ELP-USB12MP01-L185 (HFOV >180 degree)
