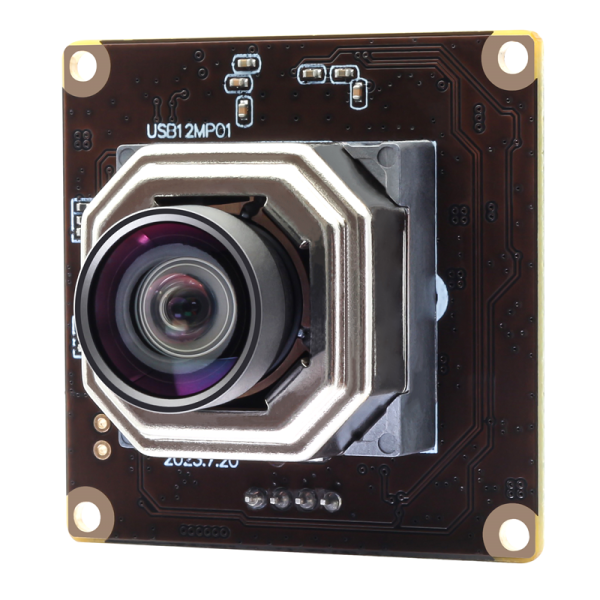

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with Autofocus Lens

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Module with Autofocus Lens

  • Model: ELP-USB12MP01-AFV100
Add to Cart:

Add you Tags
Details
Download

    Features:



    * 1/2.3" SONY IMX577 Sensor



    * Max Resolution:3840(H)*3040(V)  11.6MP



    * 3840x3040 MJPEG@20FPS, 3840x2880 MJPEG@20FPS, 3840x2160 MJPEG@30FPS, 1920x1080 MJPEG@120FPS



    * Lens: Autofocus lens, 88 degree



    * Board size 38x38mm, small size, easy to embedded in kinds of smart machines.



    * Standard with 1m cable (0.3m/0.5m/2m/3m/5m...optional)



    * Free driver, Plug & Play



    * Exposure, Hue, White Balance, Contrast, Gamma, Brightness....Parameters adjustable.



    * Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    * Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)



    * OTG support







    Specifications:

    Model NO.:

    ELP-USB12MP01-AFV100

    Image Sensor

    SONY IMX577 (1/2.3” )

    Max. Resolution

    3840(H) *3040 (V)

    Sensor Size/ Image Size

    10.7mmX8.5mm/5.95mmX4.71mm

    Default. Resolution

    3840(H) *2880(V)
    Focus Autofocus

    Compression Format

    MJPEG  / YUY2 (YUYV)

    Resolution & Frame Rate

    3840X3040 MJPEG@20fps YUY2@1fps

    3840X2880 MJPEG@20fps YUY2@1fps

    3840X2160 MJPEG@30fps YUY2@1fps

    2592X1944 MJPEG@30fps YUY2@1fps

    2048X1536 MJPEG@30fps YUY2@3fps

    1600X1200 MJPEG@30fps YUY2@5fps

    1920X1080 MJPEG@120fps YUY2@5fps

    1280X960 MJPEG@120fps YUY2@5fps

    1280X720 MJPEG@120fps YUY2@5fps

    1024X768 MJPEG@120fps YUY2@5fps

    960X720 MJPEG@120fps YUY2@5fps

    800X600 MJPEG@120fps YUY2@20fps

    640X480 MJPEG@120fps YUY2@30fps

    320X240 MJPEG@120fps YUY2@30fps

    Center Definition

    1000LW/PH (Center)

    S/N Ratio

    24dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.1 lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC/ AWB/ AGC

    Support

    Auto Focus

    Support optional

    Adjustable Parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

    Balance, Exposure

    Lens Parameter

    M12 Autofocus and No Distortion Lens, HFOV 88 degree/ VFOV 74 degree

    Power Supply& Connector

    USB BUS POWER  4P-2.0mm socket

    Power Voltage

    DC 5V

    Power Current

    240mA

    Board Size

    38mm × 38mm

    Storage Temperature

    -20°C to 85°C

    Working Temperature

    -10°C to 65°C

    USB Cable

    1M(2M/3M/5M optional)

    Operating System Support

    Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.

    Linux with UVC（above linux-2.6.26）

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
