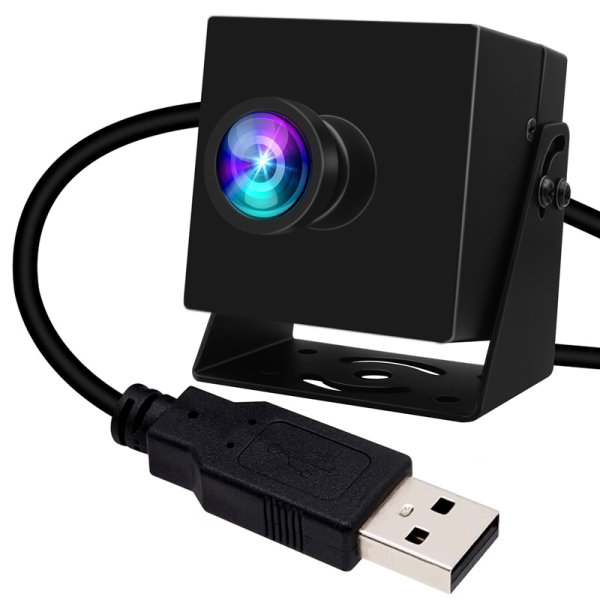

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Metal Case with No Distortion lens

12MP Sony IMX577 Sensor 4K 30FPS 1080P 120FPS USB Camera Metal Case with No Distortion lens

  • Model: ELP-USB12MP01-UH110
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    *1/2.3" SONY IMX577 Sensor



    *Max Resolution: 3840(H)*3040(V)  11.6MP



    *3840x3040 MJPEG@20FPS, 3840x2880 MJPEG@20FPS, 3840x2160 MJPEG@30FPS, 1920x1080 MJPEG@120FPS



    *No distortion lens, 118 degree



    *42x45mm, small size, easy to embedded in kinds of smart machines.



    *Standard with 3m cable (0.3m/0.5m/1m/2m/5m...optional)



    *Free Driver, Plug & Play



    *Exposure, Hue, White Balance, Contrast, Gamma, Brightness....Parameters adjustable.



    *Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry PI...



    *Compatible with different software (Amcap, iSpy, OpenCV, VLC, V4L2, Fswebcam, CameraFI, Webcam viewer, Yawcam, Photo Booth, Face time, Quick Time...)



    *OTG support





    Specifications:

    Model NO.:

    ELP-USB12MP01-UH110

    Image Sensor

    SONY IMX577 (1/2.3” )

    Max. Resolution

    3840(H) *3040 (V)

    Sensor Size/ Image Size

    10.7mmX8.5mm/5.95mmX4.71mm

    Default. Resolution

    3840(H) *2880(V)

    Compression Format

    MJPEG  / YUY2 (YUYV)

    Resolution & Frame Rate

    3840X3040 MJPEG@20fps YUY2@1fps

    3840X2880 MJPEG@20fps YUY2@1fps

    3840X2160 MJPEG@30fps YUY2@1fps

    2592X1944 MJPEG@30fps YUY2@1fps

    2048X1536 MJPEG@30fps YUY2@3fps

    1600X1200 MJPEG@30fps YUY2@5fps

    1920X1080 MJPEG@120fps YUY2@5fps

    1280X960 MJPEG@120fps YUY2@5fps

    1280X720 MJPEG@120fps YUY2@5fps

    1024X768 MJPEG@120fps YUY2@5fps

    960X720 MJPEG@120fps YUY2@5fps

    800X600 MJPEG@120fps YUY2@20fps

    640X480 MJPEG@120fps YUY2@30fps

    320X240 MJPEG@120fps YUY2@30fps

    Center Definition

    1000LW/PH (Center)

    S/N Ratio

    24dB

    Sensitivity

    0.65V/lux-sec@550nm

    Minimum illumination

    0.1 lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB2.0 High Speed

    AEC/ AWB/ AGC

    Support

    Auto Focus

    Support optional

    Adjustable Parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White

    Balance, Exposure

    Lens Parameter

    M12 No Distortion lens, HFOV 118 degree/ VFOV 101 degree

    Power Supply& Connector

    USB BUS POWER  4P-2.0mm socket

    Power Voltage

    DC 5V

    Power Current

    240mA

    Size

    42mm × 45mm x 35mm

    Storage Temperature

    -20°C to 85°C

    Working Temperature

    -10°C to 65°C

    USB Cable

    3M(1M/2M/5M optional)

    Operating System Support

    Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.

    Linux with UVC(above linux-2.6.26)

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC

    Optional Models

    No/Less distortion lens:

    ELP-USB12MP01-UV100 (HFOV 88 degree)

    ELP-USB12MP01-ULC1100 (HFOV 71 degree)

    ELP-USB12MP01-UH100 ( HFOV 102 degree)

    ELP-USB12MP01-UH110 (HFOV 118 degree)

    ELP-USB12MP01-UH120 (HFOV 125-128 degree)



    Fisheye lens:

    ELP-USB12MP01-UL170 (HFOV 164 degree)

    ELP-USB12MP01-UL185 (HFOV >180 degree)
