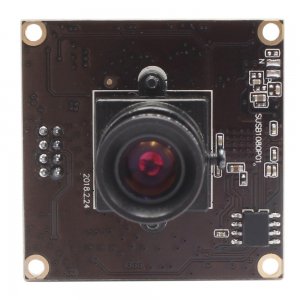

1/2.8" Sony IMX291 Sensor Full HD 1080P USB3.0 Cmos Camera Module UVC support

1/2.8" Sony IMX291 Sensor Full HD 1080P USB3.0 Cmos Camera Module UVC support

  • Model: ELP-SUSB1080P01-L36
Add to Cart:

Add you Tags
Details
Download

    Features:


    * 1080P USB3.0 high speed usb camera module
    * 1/2.8” Sony IMX291 sensor for high quality image
    * High frame rate-1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps
    * With HD 6mm M12 lens
    * MJPEG/YUY2 dual video format optional
    * Mini size 38*38MM embedded application
    * High speed USB 3.0 plug&play port - suitable for any PC with USB 3.0 interface
    * Low power consumption - ideal for portable equipment.
    * UVC compliant - support Windows, Linux, Android system with UVC


    Specification:


    Model

    ELP-SUSB1080P01-L36

    Sensor

    IMX291

    Lens Size

    1/2.8 inch

    Pixel Size

    2.9µm X 2.9µm

    Max. Resolution

    1920(H)X1080(V)

    Compression format

    MJPEG  / YUV2（YUYV）

    Resolution & frame

    1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps

    1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps

    640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps

    S/N Ratio

    40dB

    Dynamic Range

    65dB

    Sensitivity

    1900mV/lux-sec@550nm

    Mini illumination

    0. 01lux

    Shutter Type

    Electronic rolling shutter / Frame exposure

    Connecting Port type

    USB3.0 High Speed

    Free Drive Protocol

    USB Video Class（UVC）

    AEC

    Support

    AEB

    Support

    AGC

    Support

    Adjustable parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
    Gain, White balance, Backlight Contrast, Exposure

    Lens Parameter

    Standard 3.6mm M 12 lens (2.1/2.8/6/8/12mm/no distortion/fisheye lens optional)

    Power supply

    USB BUS POWER

    Operating Voltage

    DC5V

    Working current

    170mA~210mA

    Working temperature

    0～70℃

    Board size /Weight

    38*38mm

    Cable

    Standard  1M （2/3m optional)

    Operating system request

    Win8 and above

    Linux with UVC（above linux-2.6.26）

    MAC-OS X 10.4.8 or later

    Android 4.0 or above with UVC
