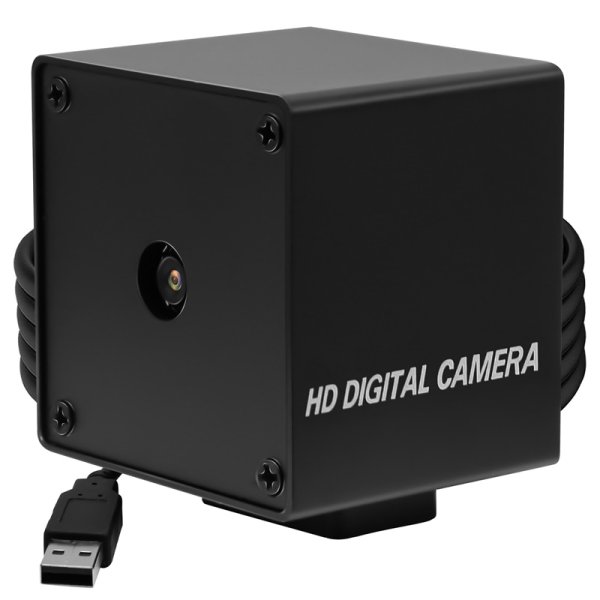

11MP OIS Anti-Shake Autofocus USB Camera 4K 30fps Free Driver with Mini Case

11MP OIS Anti-Shake Autofocus USB Camera 4K 30fps Free Driver with Mini Case

  • Model: ELP-USB4KCAM05AF-KV90
Add to Cart: Units:  100

Add you Tags
Details
Download

    Features:



    * High Definition 11 Megapixels Max Resolution 3840(H)*2880(V)



    * Anti Shake - Optical Image Stabilization OIS with Micro Gimbal Stabilizer (MGS), ensure the picture always remains clear and stable during vibration or shaking

    * Color Image Sensor Sony IMX258 CMOS 1/3.06inch

    * High Frame Rare 4K 3840X2160 30FPS, 3840X2880 15FPS

    * Auto Focus - Automatically focus clear at different distances, no need to adjust the lens

    * No Distortion Lens - With mini 90 degree No distortion Lens

    * Adjustable Parameters - available to adjust parameters accoding to your needs, like Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, WhiteBalance, Exposure

    * Super mini camera - 38*38mm board size and lightweight for many Portable Devices

    * High speed USB2.0 Interface -Plug and play ,no need any driver ,just plug to USB Port and work with the camera video software

    * OTG Support -Can work with Android development board, mobile via OTG Cable

    * High Compatibility- compatible with operation systems Android, Windows, Linux. Mac OS

    * Wide Application: Vehicle monitoring,Road monitoring,Sports photography, Industrial Inspection, ICT Testing Machine, Quality Control, 3D Scanning, Remote Inspection, Crop Monitoring, Precision Agriculture, Robotic Picking, Livestock monitoring, Drone etc.





    Specifications:



    Model NO.:

    ELP-USB4KCAM05AF-KV90

    Image Sensor

    1/3.06” SONY IMX258

    Pixel Size

    1.4μm x 1.4μm

    Max. Resolution

    3840(H) *2880(V)

    Default Resolution

    3840(H) *2160(V)

    Compression Format

    MJPEG /YUY2 (YUYV)

    Resolution & Frame Rate

    3840x2880@ 15fps MJPEG/

    2592x1944@ 30fps MJPEG/

    1600x1200@ 30fps MJPEG/

    1280x960@ 30fps MJPEG/

    800x600@ 30fps MJPEG /



    3840x2880@ 1fps YUY2/

    2592x1944@ 1fps YUY2/

    1600x1200@ 5fps YUY2/

    1280x960@ 5fps YUY2/

    800x600@ 20fps YUY2/

    3840x2160@ 30fps MJPEG

    2048x1536@ 30fps MJPEG

    1920x1080@ 30fps MJPEG

    1280x720@ 30fps MJPEG

    640x480@ 30fps MJPEG



    3840x2160@ 1fps YUY2

    2048x1536@ 3fps YUY2

    1920x1080@ 5fps YUY2

    1280x720@ 10fps YUY2

    640x480@30fps YUY2

    Center Definition

    800LW/PH (Center)

    S/N Ratio

    24dB

    Sensitivity

    0.65V/Lux-sec@550nm

    Minimum illumination

    0.1 Lux

    Shutter Type

    Electronic Rolling Shutter / Frame Exposure

    Connecting Port type

    USB2.0 High Speed

    AEC

    Support

    AWB

    Support

    AGC

    Support

    Auto Focus

    Support

    Adjustable Parameters

    Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure

    Lens Parameter

    90 degrees Anti-shake Auto-focus Lens

    Power Supply & Connector

    USB BUS POWER    4P-2.0mm Socket

    Power Voltage

    DC 5V

    Power Current

    240mA

    Size

    Board size 38mmx38mm

    Metal case size 41x41x36mm

    Storage Temperature

    -10°C to 75°C

    Working Temperature

    -10°C to 65°C

    USB Cable

    3M(1M/2M/5M... optional)

    Operating System Support

    Win XP/Vista/Win7/Win8 /Win9/Win10/Win11 etc.

    Linux with UVC (above linux-2.6.26)

    MAC OS X 10.4.8 or later

    Android 4.0 or above with UVC
